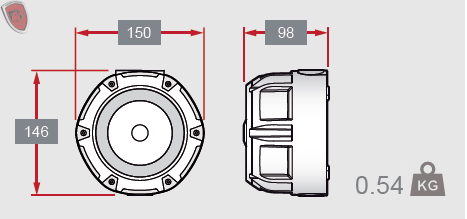

Dimensions (mm) & Weight (kg)
Features
- Complies with EN54 Part 3 Type B
- Available in Red or White Plastic
- 16 Tone patterns (site selectable)**
- Suitable for surface mounting only
- Housed in UL V0 flame retardant ABS
- 3 x 20mm cable entries (2 top, 1 bottom)
- First fix, wire to back box technology
- IP65 Rating

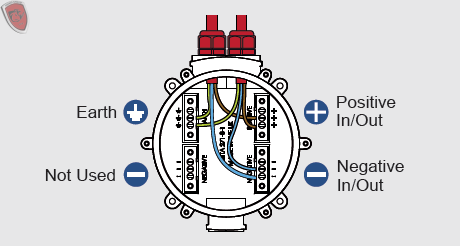

First Fix
Technical Specification
| Model | ZRAP/R | ZRAP/W |
|---|---|---|
| Part No | 42-635 | 42-636 |
| Voltage | 17 – 28V DC | |
| Quiescent Current | 1.5mA | |
| Alarm Current | LP5.4mACB | |
| Body Colour | Red | White |
| Sounder Type | B | |
| Alarm Current @ 24Vdc | 5mA | |
| IP Rating | IP65 (certified to IP33C) | |
| Operating Temperature | -25ºC to 70ºC | |
| Sound Output @ 1m | *96.9dB +/- 3dB | |
| Size mm | 150 x 146 x 98 | |
| Weight | 540g | |
* This applies to TONE 0 in reverberant conditions.
** Approved tones are Tone 0 and Tone 8.
