The Simplicity Plus is the ideal introduction to the world of addressable fire alarm panels. As its name suggests, it has been designed with ease of use in mind, using pre-programmed values for its programming ptions. The installer simply needs to configure the loop and enter text labels via the built in keypad (optional).The implicity Plus has user definable zones, option for zonal or common alarm operation, options for I/O operation, alarm verification and user selectable languages. It can be connected to an RS232 desktop printer for real time event log printing (Epson LQ300+ recommended) and it can also drive a serial repeater model SP/REP (Part No. 37-179).

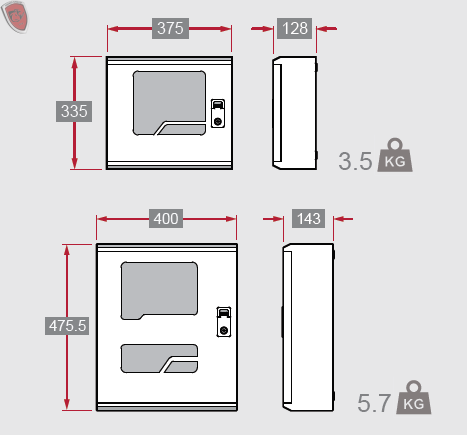

Dimensions (mm) & Weight (kg)
Features
One or Two loop addressable fire alarm panel (64, 126 or 252 device capacity)
Certified to EN54 parts 2 & 4
User definable zones
Option for zonal or common alarm operation
Options for I/O operation
Alarm verification (help prevent false alarms)
User selectable languages
Set of changeover relay contacts for fault condition
Set of changeover relay contacts for fire condition
2,048 event log (fire & fault)
Zone or device disablement
One man test mode
Plug & play, no need for any special tools or laptop for commissioning
Fully integrated keypad
All associated devices are loop powered
Technical Specification
Model
SP-64
SP-126
SP-252/M
SP-252/P
SP-REP
Part No
37-160
37-165
37-177
37-178
37-179
Supply Voltage
230V AC +/- 10%
24V DC
System Voltage
24V DC (Nominal)
19 to 30V DC
Number of Loops
1
2
Loop Capacity
64 Devices
126 Devices
126 Devices per Loop (Total 252)
Number of Zones
4
8
8
Sounder Output
Addressable Sounders Only
Fault Output
28V Repeat Output to Drive Relay (Normally Energised)
